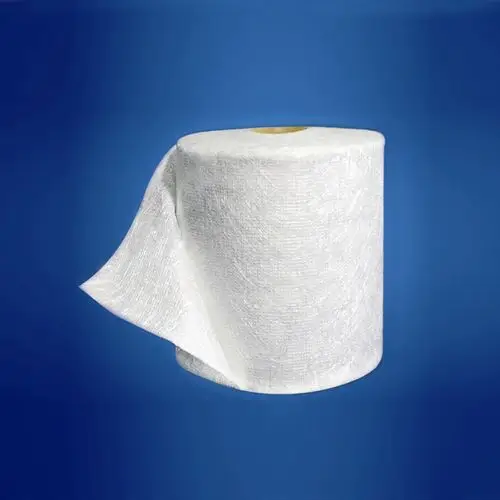

Introduction to Unidirectional Fiberglass Fabric

Fiberglass unidirectional fabric is a specialized reinforcement material where the glass fibers run predominantly in one direction, typically held together by a minimal amount of binder or stitching thread in the perpendicular direction. This construction provides exceptional strength and stiffness along the primary fiber axis while allowing for tailored mechanical properties in composite structures.

Key Characteristics

  1. Directional Strength: Offers maximum strength in the fiber direction (typically 90-95% of fibers aligned in one direction)
  2. High Fiber Volume: Can achieve up to 70% fiber volume fraction in composites
  3. Low Areal Weight: Available in various weights (typically 200-1200 g/m²)
  4. Excellent Resin Compatibility: Works well with polyester, vinyl ester, and epoxy resins
  5. Drapability: Conforms well to complex shapes despite its unidirectional nature

Advantages Over Woven Fabrics

  1. Higher Strength Efficiency: More fibers carry load in primary direction
  2. Better Fatigue Resistance: Fewer fiber undulations compared to woven fabrics
  3. Improved Impact Resistance: Continuous fibers without cross-over points
  4. Lower Resin Usage: Requires less resin to wet out than woven fabrics
  5. Tailored Properties: Can be oriented to match load paths in the structure

Typical Applications

  1. Aerospace Components: Spar caps, stringers, and stiffeners
  2. Wind Energy: Wind turbine blade reinforcements
  3. Marine Applications: Hull stiffeners, masts, and high-performance boat components
  4. Automotive: Structural members, leaf springs, and impact beams
  5. Infrastructure: Bridge reinforcements, seismic retrofitting
  6. Sporting Goods: Snowboards, skis, hockey sticks, and bicycle frames

Handling and Processing Considerations

  1. Layup Techniques: Best suited for hand layup, vacuum bagging, or prepreg processes
  2. Ply Orientation: Multiple layers are typically stacked at different angles (0°, ±45°, 90°)
  3. Edge Fraying: Requires careful handling as fibers can separate easily
  4. Storage: Should be kept dry and flat to maintain fiber alignment

Future Developments

  1. Hybrid Unidirectional Fabrics: Combining glass with carbon or other fibers
  2. Thermoplastic UD Tapes: For faster processing and recyclability
  3. Smart UD Fabrics: With integrated sensors for structural health monitoring
  4. Improved Binders: For better handling without compromising properties

Unidirectional fiberglass fabric continues to be a vital material in advanced composite applications where directional strength and weight optimization are critical requirements.
